Premium Model

Conductor capacity :	0.40 mm to 2.00 mm.
Maximum line speed :	65 mtr/Min.
CMaximum Spindle speed :	2500 rpm.
Maximum tape size :	320mm outside diameter 40mm height up to 50mm bore and custom size.
Taping spindle through bore :	12mm diameter conception.
Take off Rill Capacity :	Torque Controlled up to 80 Kg.
Electrical supply :	440 volt. 3 phase 50 hertz 2 HP AC inverter each line.
Machine weight :	600 kg.
One year Warranty *

Jumbo Super Delux

Conductor capacity :	1.50 mm to 4.00mm.
Maximum line speed :	45 mtr/Min.
Maximum Spindle speed :	1800 rpm.
Maximum tape size :	320mm outside diameter 40mm height up to 50mm bore and custom size.
Taping spindle through bore :	12mm diameter conception.
Take off Rill Capacity :	Torque Controlled up to 100 Kg.
Electrical supply :	440 volt. 3 phase 50 hertz 2 HP AC inverter each line.
Machine weight :	1100 kg.
With torque motor Mtr / Min. Indicator Counter Indicator Spindle rpm Indicator Electro Magnetic Tension control System With strobe light (for watch tap position)
One year Warranty *

Star Model

Conductor capacity :	0.40 mm to 2.00 mm.
Maximum line speed :	52 mtr/Min.
CMaximum Spindle speed :	2500 rpm.
Maximum tape size :	320mm OD 40mm height up to 50mm bore and custom size.
Taping spindle through bore :	12mm diameter conception.
Take off Rill Capacity :	40 Kg. Max.
Electrical supply :	440 volt. 3 phase 50 hertz 2 HP AC inverter each line.
Machine weight :	550 kg.
One year Warranty *

Standard Model

Conductor capacity :	0.40 mm to 2.00 mm.
Maximum line speed :	48 mtr/Min.
CMaximum Spindle speed :	2500 rpm.
Maximum tape size :	320mm OD 40mm height up to 50mm bore and custom size.
Taping spindle through bore :	12mm diameter conception.
Take off Rill Capacity :	40 Kg. Max.
Electrical supply :	440 volt. 3 phase 50 hertz 2 HP AC inverter each line.
Machine weight :	500 kg.
Counter Indicator Mechanical Tension control System With strobe light (for watch tap position)
One year Warranty *

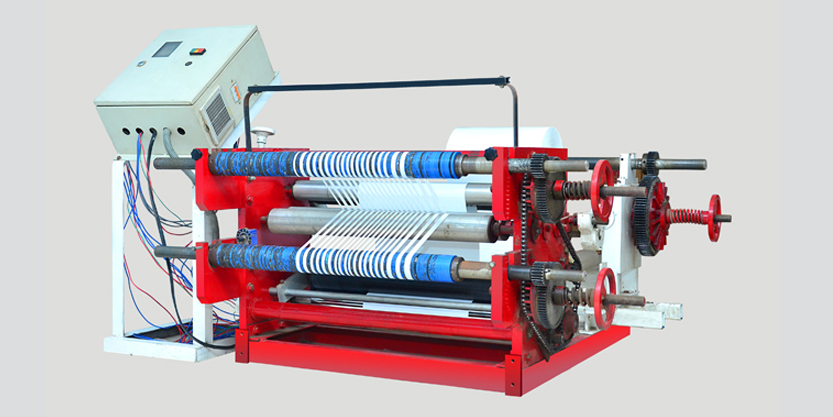

Slitting Machine

Side frame construction of ribbed anti vibration steel & c.i. Body. Slitting method razor blades or by rotary knives. Parent roll dia 600mm on 76mm core ID. Rewind duplex type Dynamically balanced drive Rollers Trim separation by air blower Line speed up to 80 mtr/min Electrical supply & consumption 440 volts, 3 phase, 50 hertz, 2 hp AC Inverter Weight 375 kg.
One year Warranty *

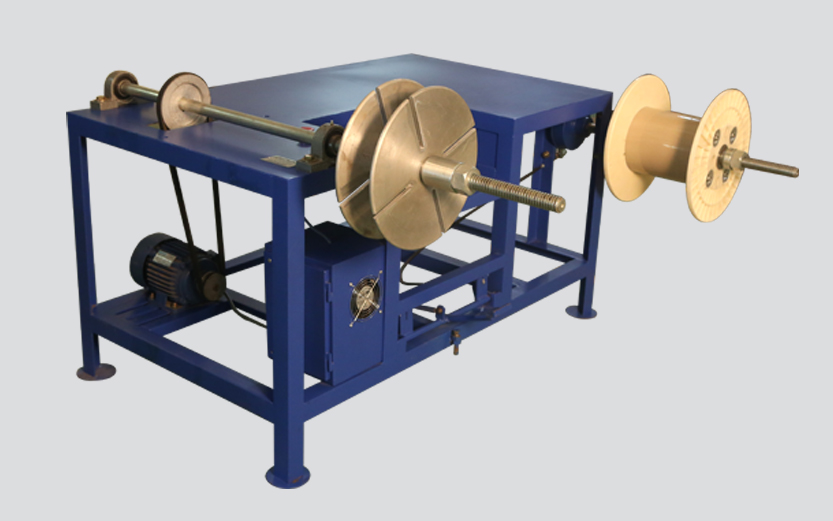

Winder

Speed :	6000 mtr / hour
Size :	0.4 mm to 4.00 mm
With AC Drive With Braking System
One year Warranty *

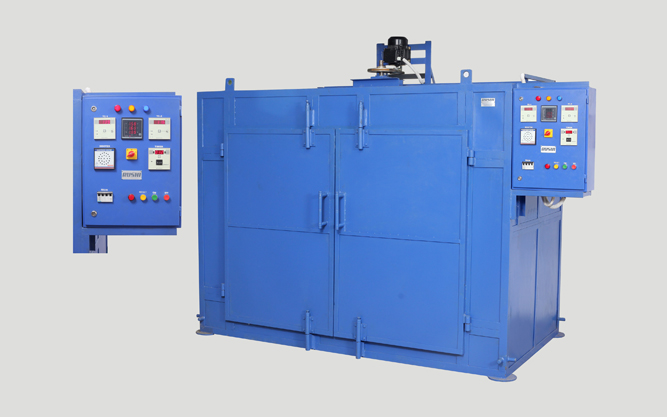

Oven

Temperature :	maximum 250 c.
Cabin size : :	65 inch wide, 50 inch height, 45 inch depth.
Electrical supply :	440 volt 50 hertz 3 phase
Power consumption :	15KV
* Machines are also made as per customers requirement
One year Warranty *
